Introduction to Docker - Part 3: Compose

Learn how to use Docker Compose by orchestrating a complete architecture by connecting a PostgreSQL database and pgAdmin interface using declarative configuration, internal networking, and Service Discovery.

Docker Compose is a tool that allows us to define and run multi-container Docker applications. It uses a YAML file to configure our application's services, networks, and volumes. Running long docker run commands manually is risky and hard to reproduce. Docker Compose fixes this by letting us define our entire architecture in a single configuration file (docker-compose.yml).

For this project, we will define two distinct services in our configuration file:

db: The PostgreSQL database.
pgAdmin: The web interface to manage that database.

The Orchestrator

Let's create a new directory on our computer and an empty file inside it named docker-compose.yml. This file defines each application we want docker to run as services like this:

services:
    service_name_1:
    ...
    service_name_2:
    ...

with service_names being the custom name we will give to our app.

The Database

Our first step will be to define the database service. Let's give it the service name db and have it use the official postgres:16 image. All we have to do is write:

services:
  db:
    image: postgres:16

As we can see inside the db service block we used image to set the image of our database service.

Now, for a database to function securely and effectively, it needs a bit of configuration—specifically, a username, password and database name. In Docker, we pass these configurations using environment variables.

Inside the db service block (at the same indentation level as image), we need to add an environment section:

services:
  db:
    image: postgres:16
    environment:
      POSTGRES_USER: "user"
      POSTGRES_PASSWORD: "password"
      POSTGRES_DB: "mydatabase"

As their name suggests:

POSTGRES_USER: defines the username of the database
POSTGRES_PASSWORD: defines the password of the database
POSTGRES_DB: defines the name of the database

Note

By default, the image creates a database with the same name as the user. However, being explicit is safer. If we hadn't used POSTGRES_DB: "mydatabase", the name of the created database would be user.

Now, we have a database service defined, but currently, it's locked inside the container. To verify it works or access it from our local computer, we usually need to "open a door" by mapping a port.

Inside the db block (at the same level as image and environment), we add a ports section to map port 5433 on our computer to port 5432 inside the container:

services:
  db:
    image: postgres:16
    environment:
      POSTGRES_USER: "user"
      POSTGRES_PASSWORD: "password"
      POSTGRES_DB: "mydatabase"
    ports:
      - "5433:5432"

Now it's time to add volumes. If we don't, any data we save into the database will vanish the moment the container is removed. Let's create a named volume by adding a volumes section inside the db block:

services:
  db:
    image: postgres:16
    environment:
      POSTGRES_USER: "user"
      POSTGRES_PASSWORD: "password"
      POSTGRES_DB: "mydatabase"
    ports:
      - "5433:5432"
    volumes:
      - "pgdata:/var/lib/postgresql/data"

volumes:
  pgdata:

What's that new volumes section on the outside of the services block though? One "gotcha" with named volumes is that we must declare them at the very bottom of our docker-compose.yml file so Docker knows they exist.

The Interface

Let's add pgAdmin to the mix. PgAdmin is a graphical user interface (GUI) tool for managing PostgreSQL databases, making it easier to create, maintain, and administer database objects.

All we have to do is to create another service inside the services block. Let's give it the service name pgadmin. Just like with the db block we will need four blocks:

image: The official docker image for pgAdmin 4 is dgage/pgadmin4.
environment: PGADMIN_DEFAULT_EMAIL and PGADMIN_DEFAULT_PASSWORD which will be the login credentials we will use on the login screen of pgAdmin.
ports: We will map port 8085 on our computer to port 80 inside the container.
volumes: We will map the named volume pgadmin-data to /var/lib/pgadmin inside the container.

Hence, we have that the final version of our docker-compose.yml is:

services:
  db:
    image: postgres:16
    environment:
      POSTGRES_USER: "user"
      POSTGRES_PASSWORD: "password"
      POSTGRES_DB: "mydatabase"
    volumes:
      - "pgdata:/var/lib/postgresql/data"
    ports:
      - "5433:5432"

  pgadmin:
    image: dpage/pgadmin4
    environment:
      PGADMIN_DEFAULT_EMAIL: "admin@admin.com"
      PGADMIN_DEFAULT_PASSWORD: "root"
    volumes:
      - "pgadmin-data:/var/lib/pgadmin"
    ports:
      - "8085:80"

volumes:
  pgdata:
  pgadmin-data:

Just like we did with db, we added the pgadmin-data volume on the volumes section which sits on the same level as the services section.

Note

Technically, the pgAdmin container will start and run perfectly fine without any volumes. However, if you don't assign a volume, pgAdmin will have "amnesia." Every time we stop and restart the container, it will forget any server connections or preferences we set up in the web interface. We would have to re-enter the database credentials every single time. Nevertheless, no data would be lost, since the actual data live in the db service. The pgadmin service is just a window into the database.

Startup Order

There is one small flaw in our current plan. By default, Docker starts all services in parallel to be as fast as possible. This creates a "race condition": pgadmin might start up and try to connect to the database before the db container has even finished waking up.

To fix this, we can tell Docker that pgadmin depends on the database. We do this by adding a depends_on block inside the pgadmin service:

  pgadmin:
    image: dpage/pgadmin4
    environment:
      PGADMIN_DEFAULT_EMAIL: "admin@admin.com"
      PGADMIN_DEFAULT_PASSWORD: "root"
    volumes:
      - "pgadmin-data:/var/lib/pgadmin"
    ports:
      - "8085:80"
    depends_on:
      - db

This simple instruction tells Docker: "Do not start pgadmin until the db container is running."

Note

It is important to know that depends_on only waits for the database container to start, not for the actual database software (PostgreSQL) inside it to be ready to accept connections. However, for most simple projects, this is enough to prevent errors, as pgAdmin is smart enough to retry the connection a few times if it fails initially.

`docker compose up`

We now have both services in the same file, which means Docker automatically places them on the same network. This allows pgadmin to "see" the db service.

To get everything running, we need to use the terminal. Let's open a terminal in the folder where we have our file. All we have to do is run:

docker compose up

Note

We can add the -d flag to that command (docker compose up -d) to run the containers in the "background" (detached mode) so they keep running even if we close the terminal.

Once the command finishes, we should be able to open our browser and go to http://localhost:8085 to see the pgAdmin login screen.

alt text

After we log in with our email (admin@admin.com) and password (root), we will need to "Register" (add) a new server to connect to your PostgreSQL database. To do that, we click on "Add New Server".

In the General tab, we give a name to our server, for example My Shiny New Server.

Host name/address

Next, we move on to the Connection tab. Here, pgAdmin asks for the Host name/address. One could think that we should put localhost. However, inside the pgAdmin container, localhost refers to the pgAdmin container itself, not our computer or the database!

Instead, we will use Docker's Service Discovery. When services are on the same Docker network, they identify each other by their service name, not the network name or localhost. Hence, we have to use the service name we gave to the database in our docker-compose.yml file, that is db.

Port

Next, we need to specify a Port. In the docker-compose.yml file we mapped the port to 5433:5432 (Host Port : Container Port). Since pgAdmin is connecting from inside the Docker network we will use 5432.

Note

Internal container traffic (pgAdmin ↔ database) uses db and port 5432. External traffic (Your Computer ↔ database) uses localhost and port 5433 (if we were to use a tool installed directly on our computer, like DBeaver or a local script).

Maintenance Database

When pgAdmin first connects to a server, it needs to shake hands with some database immediately to read the system catalogs (the lists of other databases, users, etc.). This is what it calls the "Maintenance database".

The postgres image always includes a default database named postgres specifically for this administrative purpose. It is like the "lobby" of the building. mydatabase, the name we gave to our database through POSTGRES_DB is the specific room we built.

Hence, we put postgres in the Maintenance database

Note

If we set the maintenance database to mydatabase, we are connected inside that specific database. This can cause "locking" issues later. For example, if we ever wanted to delete or rename mydatabase using pgAdmin, the system would block us and say, "I can't delete this database because you are currently standing inside it!"

Username and Password

We set user for the Username, and password for the Password just like set them in docker-compose.yml.

Final `docker-compose.yml` File

Here is our complete, final version of the docker-compose.yml file:

services:
  db:
    image: postgres:16
    environment:
      POSTGRES_USER: "user"
      POSTGRES_PASSWORD: "password"
      POSTGRES_DB: "mydatabase"
    volumes:
      - "pgdata:/var/lib/postgresql/data"
    ports:
      - "5433:5432"

  pgadmin:
    image: dpage/pgadmin4
    environment:
      PGADMIN_DEFAULT_EMAIL: "admin@admin.com"
      PGADMIN_DEFAULT_PASSWORD: "root"
    volumes:
      - "pgadmin-data:/var/lib/pgadmin"
    ports:
      - "8085:80"
    depends_on:
      - db

volumes:
  pgdata:
  pgadmin-data:

Conclusion

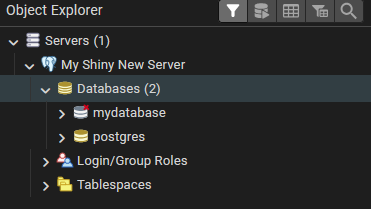

We successfully managed to connect to the database.

alt text

Just to check that everything is working, let's right click on mydatabase and select Query Tool. In the panel that opens, let's type this command to simply check the database version:

SELECT version();

By hitting the play button we see

PostgreSQL 16.11 (Debian 16.11-1.pgdg13+1) on x86_64-pc-linux-gnu, compiled by gcc (Debian 14.2.0-19) 14.2.0, 64-bit

Finally, if we want to stop the docker containers and remove the networks (but keep our data safe in the volumes), we'll go back to the terminal and type

docker compose down
